doctor blade for Flexographic printing
¥500.00

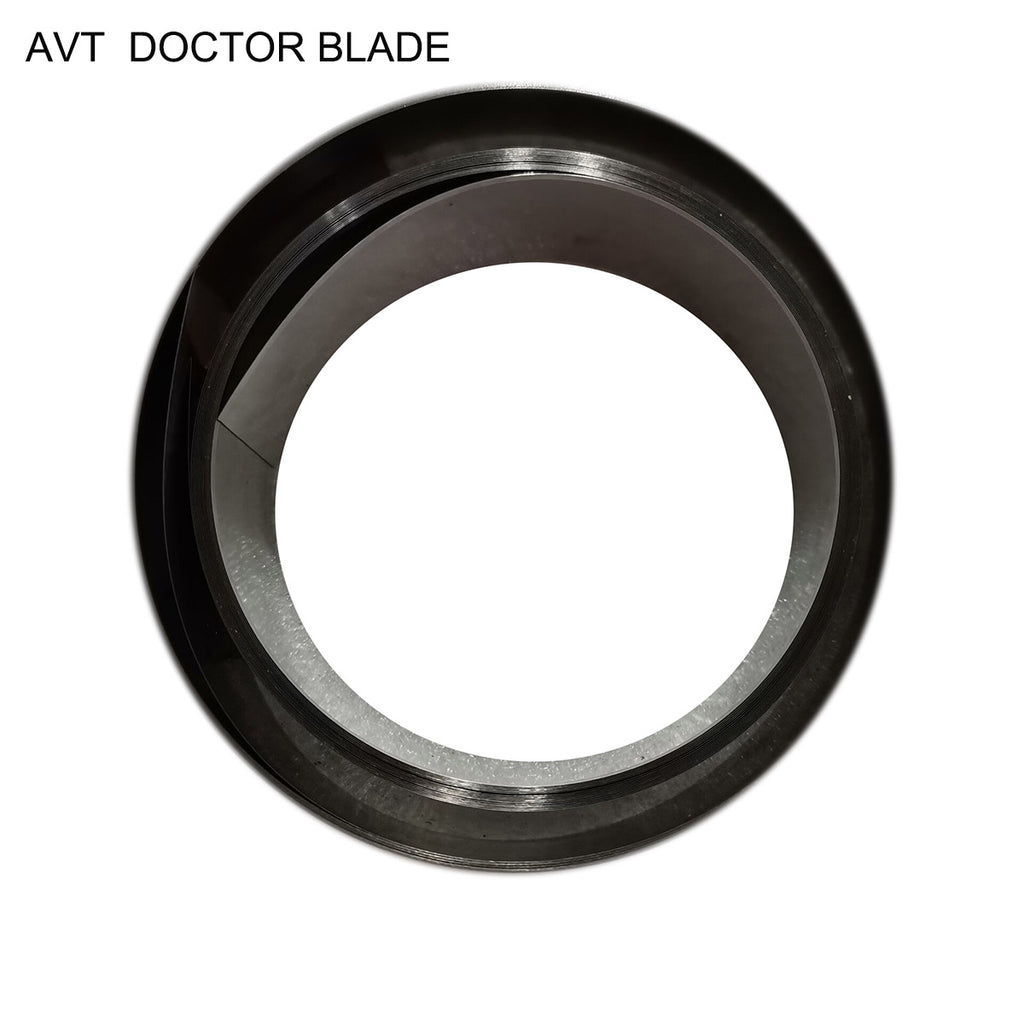

Printing Doctor Blade (Flexo Printing / Gravure Printing Doctor Blade )
Application
Carbon steel doctor blade is used in gravure printing to wipe ink off the nonprinting areas of the printing cylinder
or plate, leaving ink inside the printing areas of the plate.
Suitable for flex printing, such as wide web printing press, label press, corrugated pre-print and post printing
press, gravure printing, decorate materials printing, coating and varnishing.
Specifcation
| Model | Hardness |
Size (mm) (Width x Thickness) |
Packing | |
|
Normal speed (70-120 meter/ minute) |
1960 n/mm (580HV+/-15) |
20 X 0.15 mm | 100m / box | |
| 30 X 0.15 mm | 100m / box | |||
| 40 X 0.15 mm | 100m / box | |||
| 50 X 0.15 mm | 100m / box | |||
| 60 X 0.15 mm | 100m / box | |||
|
High speed (120 -200meter/ minute) |
1960 n/mm (580HV+/-15) |
10 X 0.15 mm | 100m / box | |
| 20 X 0.15 mm | 100m / box | |||
| 25 X 0.15 mm | 100m / box | |||
| 30 X 0.15 mm | 100m / box | |||
| 35 X 0.15 mm | 100m / box | |||
| 40 X 0.15 mm | 100m / box | |||
| 50 X 0.15 mm | 100m / box | |||
| 60 X 0.15 mm | 100m / box | |||
| 25 X 0.20 mm | 100m / box | |||
| 35 X 0.20 mm | 100m / box | |||
| 40 X 0.20 mm | 100m / box | |||
| 50 X 0.20 mm | 100m / box | |||
| 60 X 0.20 mm | 100m / box | |||

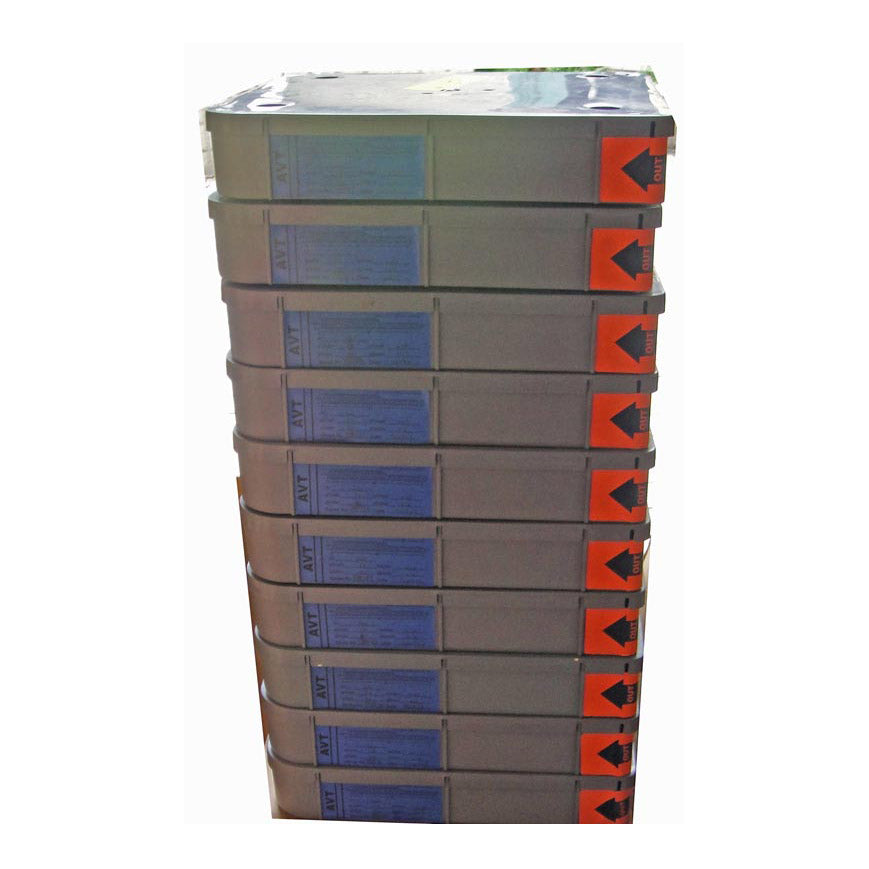

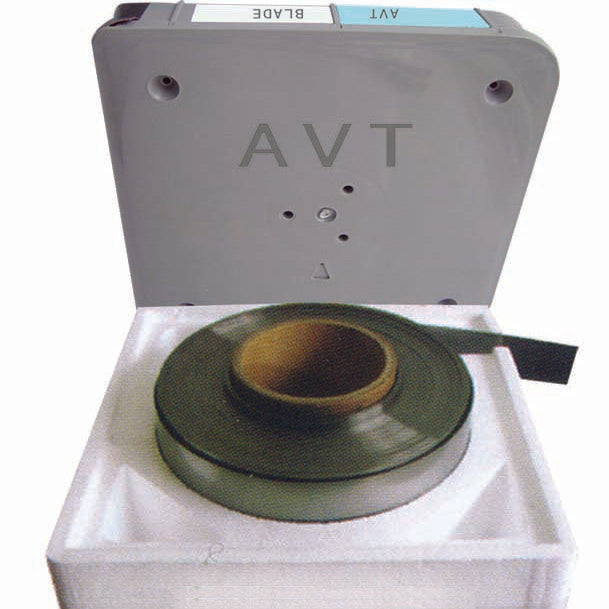

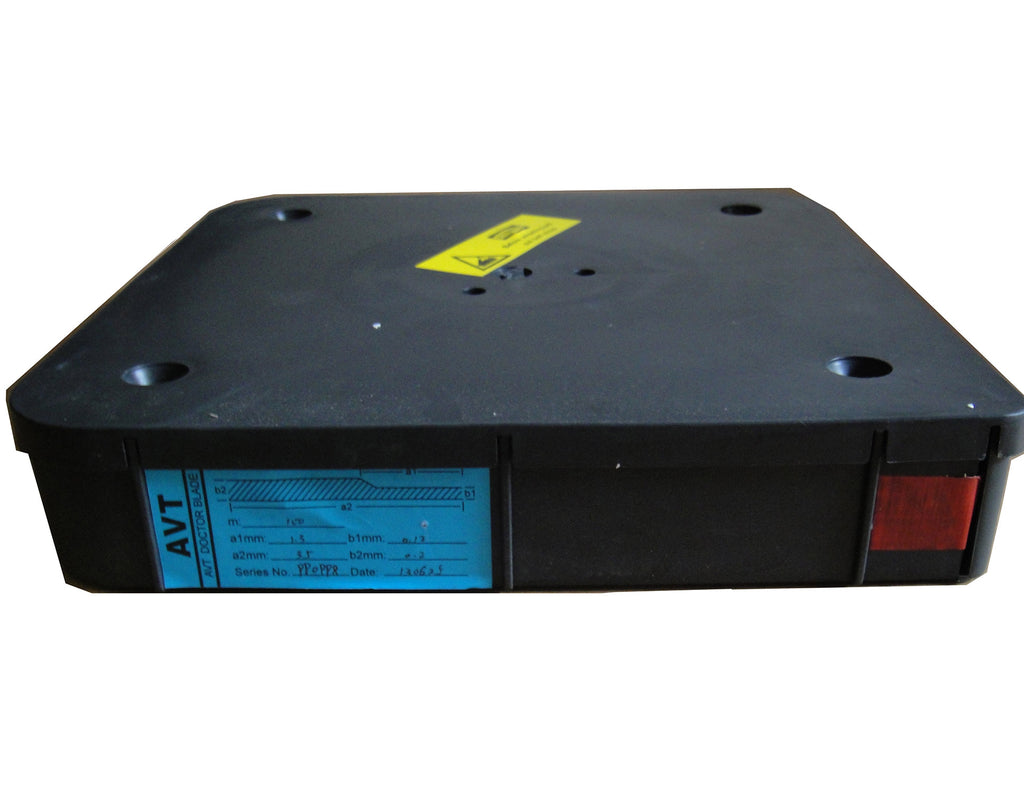

Packing
100 m / box, 4 box / carton
